The product width is 23.4mm only.
Suitable for small size windows and decorative windows.
Feature
- 1.
- The width of the product is 23.4mm only,
suitable for small size windows and decorative windows.
23.4mm of product width
Metal plate to keep
the screen door retracted
- 2.
- A metal plate is fixed to keep the screen door retracted
when not in use.
Black
- 3.
- PP Net
NET (100% polypropilene monofilament ) with Metaco Stamp-pleating Technology achieves higher rigidity and mechanical resistance, keeping the entire screen upright, letting maximum airflow and a pleasant visual impression. Shielded with pigment black (Carbon) for protection from UV radiation.(Black)
4. Colors available
*Product image for illustration purposes only.
Actual product may vary.
How to Operate
Open/close the screen door from the integrated handle.
Doors are magnet closure.
Maintenance
Wipe the mesh lightly with a clean damp cloth.
Install Location Conditions
Check if the install location is not obstructed by any object that may interfere with installation and operation.
1. Choose a flat place with (a) 24mm width space for installation.
2. Check if the window handles do not interfere with the product.
3. Verify if the opening being screened is square, parallel and that all 4 corners are right-angled.

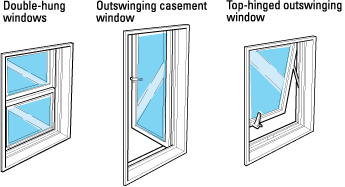

Windows suitable for installing to
Method of measuring
The required casing depth shown in Figure (a) to fit a product in the wooden frame is more than 24mm. Please designate the width and height of the installing space.
Attention: These measurements should be made on a few points of both width and height and the maxiam measurement should be used, When the wooden frame may have been deformed.

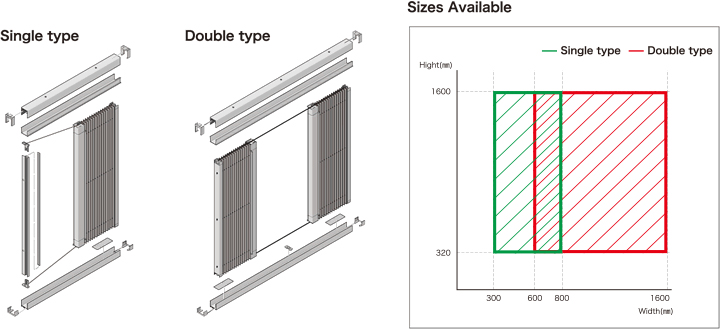

Configuration
Embedding the frames will create neat and tidy finish.
The pleat net is retracted and kept compact when not in use.
Colors available : Black
Black
*Product image for illustration purposes only. Actual product may vary.
