A retractable pleated-net insect screen easy to exchange the net.
Purchase a new assembled net to replace your current one that’s been stained or damaged.
You can also wash the net with water by simply removing it from the screen door unit.
Feature
Net Assembly is exchangeable
Zipooh pleated net is exchangeable. Purchase a new assembled net to replace with the damaged one.
One screw driver is the only tool required to replace.
Retractable
Pleated net will be folded when retracting the unit.
You can hold the Sliding Bar door with Hold Hook.
Barrier-free design
Bottom Rail height is only 5mm. It is designed barrier-free and you will have less chance of stumbling by the height of rail. Scorpiontails are caught with the rail head, preventing derailment unless with the strong wind.
Easy Installation
Screws and double-sided tape are used to fix the unit. Philips screwdriver is the only unit you require to complete the installation.
Easy maintenance
Take out the unit for washing the net with water. With our Metaco stamp pleating technology on polypropylene net, deformation of the pleats with water and net height shrinkage are less found even after years of operation.
Color Variations
Colors available
※Product image for illustration purposes only. Actual product may slightly vary.
Net Colors
Black
Gray
※Maximum product height for grey net is H2,600mm.
Specification

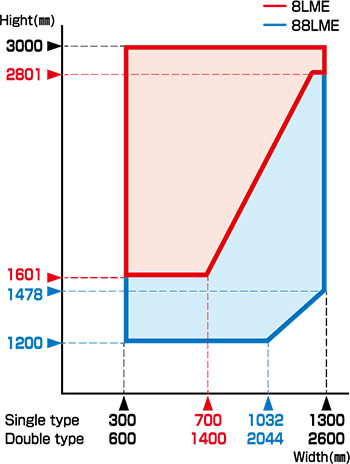

○Workable sizes
Optional Parts (please contact for detail)
①Net Assembly for replacement
Replace the stained and damaged net with this one.
Details on Quality Control Sheet are required when ordered.
②Cover for Door Closer
Optional item to cover the door closer and lower the height.
③Aluminum Bottom Rail
We recommend you use this aluminum rail anywhere the sunlight is strong or any place double sided tape does not function properly . Use aluminum screws to fix this rail.
Method of measuring
○Installation
Install location should meet the conditions below;
1. Install location (door frame, wall, floor, etc..) is flat.
2. Install location has a width space of 40mm or more.
3. Door closer, handles and/or knobs do not interfere with the product.
4. Door opening is square, parallel and that all 4 corners are right-angled.
○Measuring
Check the install location and measure the width and height of your opening.
NOTE : Measure the opening width and height in 2 or 3 different places, as many openings are not square.
When placing your order, use the biggest size of the measurements.
NOTE : The top margin of the product allows you to adjust +10mm, -20mm in height.
Document download

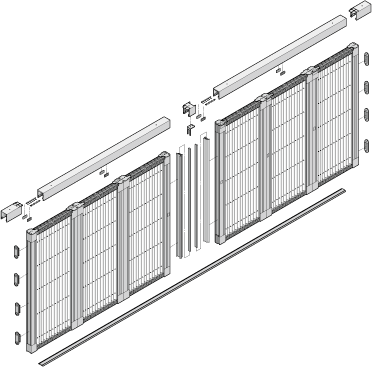

This is the multi screen specification. You can connect up to 3 screen-units on one side, and cover openings up to 7.8m in width with double retracting systems.
Maximum width of single screen is W1,300mm
